Kopp 1005

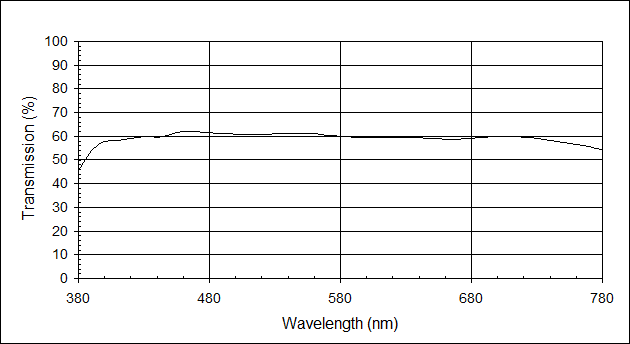

Note: Graph and tabular data at 1.00 mm
Filter Specifications
Transmission at 405 nm must be 56 ± 3%
Transmission at 545 nm must be 57 ± 3%
Transmission at 695 nm must be 62 ± 3%
Physical Properties
Nominal Thickness Range 1.00 mm
Refractive Index nD = 1.50
Density 2.30 g/cm3
Thermal Linear Expansion 58E-7 /șC (30-300 șC)
Strain Temperature 515 șC
Annealing Temperature 536 șC
Deformation Temperature 564 șC


    Kopp 1005
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 24.44 435 59.78 670 58.81
205 30.94 440 59.66 675 58.98
210 36.88 445 60.07 680 59.17
215 42.01 450 60.77 685 59.38
220 44.82 455 61.40 690 59.55
225 43.96 460 61.82 695 59.85
230 45.40 465 61.89 700 59.88
235 50.33 470 61.90 705 59.92
240 54.20 475 61.72 710 59.98
245 56.63 480 61.55 715 59.77
250 57.89 485 61.31 720 59.69
255 58.30 490 61.13 725 59.43
260 58.28 495 61.03 730 59.08
265 58.56 500 60.89 735 58.80
270 58.99 505 60.85 740 58.32
275 59.44 510 60.86 745 57.91
280 59.81 515 60.78 750 57.53
285 59.78 520 60.85 755 57.06
290 59.66 525 60.89 760 56.50
295 60.07 530 60.98 765 56.08
300 60.77 535 61.11 770 55.49
305 61.40 540 61.14 775 55.03
310 61.82 545 61.17 780 54.52
315 61.89 550 61.10 785 53.98
320 61.90 555 61.07 790 53.49
325 61.72 560 60.98 795 52.98
330 61.55 565 60.77 800 52.54
335 61.31 570 60.49 805 51.97
340 61.13 575 60.26 810 51.43
345 61.03 580 59.93 815 50.91
350 60.89 585 59.78 820 50.51
355 60.85 590 59.51 825 50.05
360 60.86 595 59.43 830 49.52
365 60.78 600 59.52 835 49.21
370 60.85 605 59.54 840 48.71
375 60.89 610 59.57 845 48.20
380 60.98 615 59.69 850 47.88
385 61.11 620 59.69 855 47.26
390 61.14 625 59.66 860 47.04
395 61.17 630 59.58 865 46.31
400 61.10 635 59.44 870 45.80
405 61.07 640 59.35 875 45.55
410 60.98 645 59.12 880 44.76
415 60.77 650 59.02 885 45.05
420 60.49 655 58.87 890 44.95
425 60.26 660 58.77 895 44.24
430 59.93 665 58.78 900 43.13
