Kopp 3003

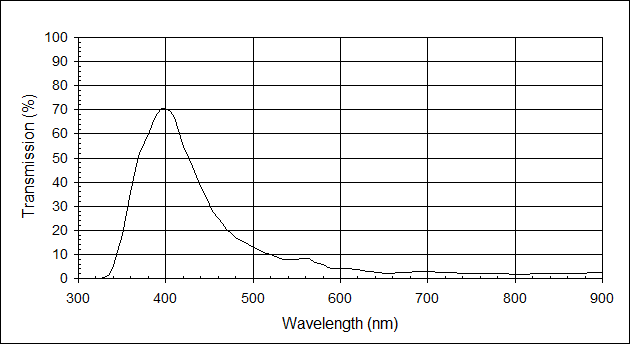

Note: Graph and tabular data at 6.00 mm
Filter Specifications
	This filter glass is used for altering the effective color temperature of radiation
	depending on the thickness of the glass
Physical Properties
	Nominal Thickness Range					5.1 - 6.1 mm
	Refractive Index					nD = 1.53
	Density					2.72 g/cm3
	Thermal Linear Expansion					107E-7 /ºC (30-300 ºC)
	Strain Temperature					447 ºC
	Annealing Temperature					483 ºC
	Deformation Temperature					522 ºC
		Kopp 3003
	Wavelength	Transmission		Wavelength	Transmission		Wavelength	Transmission
	(nm)	(%)		(nm)	(%)		(nm)	(%)
	200	0.00		435	42.12		670	2.39
	205	0.00		440	38.18		675	2.52
	210	0.00		445	34.40		680	2.64
	215	0.00		450	30.88		685	2.73
	220	0.00		455	27.55		690	2.81
	225	0.00		460	24.93		695	2.83
	230	0.00		465	22.65		700	2.80
	235	0.00		470	20.46		705	2.75
	240	0.00		475	18.63		710	2.68
	245	0.00		480	17.17		715	2.60
	250	0.00		485	15.95		720	2.53
	255	0.00		490	14.91		725	2.44
	260	0.00		495	13.91		730	2.35
	265	0.00		500	13.03		735	2.20
	270	0.00		505	12.22		740	2.08
	275	0.00		510	11.30		745	2.07
	280	0.00		515	10.57		750	2.04
	285	0.00		520	9.90		755	2.05
	290	0.00		525	9.04		760	2.03
	295	0.00		530	8.32		765	2.01
	300	0.00		535	7.85		770	1.98
	305	0.00		540	7.78		775	1.96
	310	0.00		545	7.78		780	1.94
	315	0.00		550	7.97		785	1.89
	320	0.00		555	8.24		790	1.87
	325	0.04		560	8.36		795	1.83
	330	0.38		565	8.19		800	1.80
	335	1.79		570	6.71		805	1.78
	340	5.23		575	6.24		810	1.78
	345	11.31		580	5.91		815	1.85
	350	18.41		585	4.51		820	1.88
	355	26.77		590	4.35		825	1.91
	360	35.69		595	4.13		830	1.94
	365	45.24		600	4.22		835	1.96
	370	51.99		605	4.18		840	1.99
	375	56.48		610	4.01		845	2.00
	380	59.82		615	3.87		850	2.04
	385	64.43		620	3.66		855	2.07
	390	68.29		625	3.39		860	2.09
	395	70.41		630	3.10		865	2.12
	400	70.65		635	2.82		870	2.15
	405	69.38		640	2.57		875	2.17
	410	66.79		645	2.39		880	2.17
	415	61.46		650	2.27		885	2.31
	420	54.80		655	2.23		890	2.34
	425	51.52		660	2.24		895	2.42
	430	46.56		665	2.30		900	2.39
