Kopp 4010

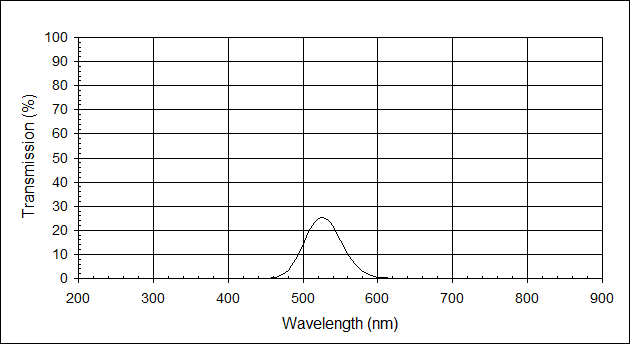

Note: Graph and tabular data at 4.10 mm
Filter Specifications
Maximum transmission at 525 ± 3 nm
Transmission at 525 ± 3 nm must be 25 ± 3.5%
Transmission at 570 nm must be equal to transmission at 482 ± 4 nm
Physical Properties
Nominal Thickness Range 3.5 - 4.5 mm
Refractive Index nD = 1.51
Density 2.48 g/cm3
Thermal Linear Expansion 92E-7 /șC (30-300 șC)
Strain Temperature 469 șC
Annealing Temperature 510 șC
Deformation Temperature 691 șC


    Kopp 4010
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 0.00 670 0.00
205 0.00 440 0.00 675 0.00
210 0.00 445 0.01 680 0.00
215 0.00 450 0.03 685 0.00
220 0.00 455 0.09 690 0.00
225 0.00 460 0.25 695 0.00
230 0.00 465 0.58 700 0.00
235 0.00 470 1.16 705 0.00
240 0.00 475 2.09 710 0.00
245 0.00 480 3.46 715 0.00
250 0.00 485 5.38 720 0.00
255 0.00 490 7.88 725 0.00
260 0.00 495 10.89 730 0.00
265 0.00 500 14.17 735 0.00
270 0.00 505 17.53 740 0.00
275 0.00 510 20.62 745 0.00
280 0.00 515 23.16 750 0.00
285 0.00 520 24.85 755 0.00
290 0.00 525 25.51 760 0.00
295 0.00 530 25.07 765 0.00
300 0.00 535 23.70 770 0.00
305 0.00 540 21.52 775 0.00
310 0.00 545 18.85 780 0.00
315 0.00 550 15.92 785 0.00
320 0.00 555 12.98 790 0.00
325 0.00 560 10.23 795 0.00
330 0.00 565 7.82 800 0.00
335 0.00 570 5.80 805 0.00
340 0.00 575 4.16 810 0.00
345 0.00 580 2.92 815 0.00
350 0.00 585 1.99 820 0.00
355 0.00 590 1.32 825 0.00
360 0.00 595 0.87 830 0.00
365 0.00 600 0.55 835 0.00
370 0.00 605 0.35 840 0.00
375 0.00 610 0.22 845 0.00
380 0.00 615 0.14 850 0.00
385 0.00 620 0.08 855 0.00
390 0.00 625 0.05 860 0.00
395 0.00 630 0.03 865 0.00
400 0.00 635 0.02 870 0.00
405 0.00 640 0.02 875 0.00
410 0.00 645 0.01 880 0.00
415 0.00 650 0.01 885 0.00
420 0.00 655 0.01 890 0.00
425 0.00 660 0.00 895 0.00
430 0.00 665 0.00 900 0.00
