Kopp 5073

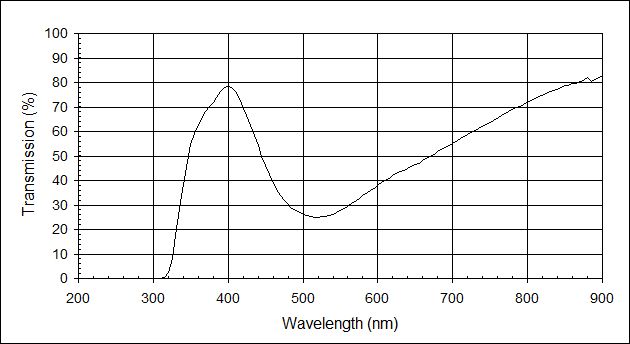

Note: Graph and tabular data at 2.70 mm
Filter Specifications
Transmission at 700 nm must be 55 ± 1.3%
Minimum transmission at 517 ± 5 nm
Transmission at 700 nm must be equal to transmission at 436 ± 6 nm
Physical Properties
Nominal Thickness Range 2.4 - 3.9 mm
Refractive Index nD = 1.59
Density 3.26 g/cm3
Thermal Linear Expansion 106E-7 /șC (30-300 șC)
Strain Temperature 400 șC
Annealing Temperature 439 șC
Deformation Temperature 620 șC


    Kopp 5073
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 58.35 670 49.82
205 0.00 440 54.15 675 50.80
210 0.01 445 49.98 680 51.68
215 0.00 450 46.06 685 52.68
220 0.00 455 42.29 690 53.55
225 0.01 460 39.11 695 54.44
230 0.01 465 36.45 700 55.27
235 0.01 470 33.96 705 56.09
240 0.01 475 31.77 710 56.95
245 0.01 480 30.01 715 57.80
250 0.01 485 28.64 720 58.69
255 0.01 490 27.68 725 59.52
260 0.01 495 26.78 730 60.36
265 0.01 500 26.05 735 61.25
270 0.01 505 25.55 740 62.09
275 0.01 510 25.23 745 62.98
280 0.01 515 25.05 750 63.77
285 0.01 520 25.04 755 64.61
290 0.01 525 25.16 760 65.49
295 0.01 530 25.40 765 66.34
300 0.01 535 25.79 770 67.18
305 0.02 540 26.32 775 68.01
310 0.02 545 26.96 780 68.79
315 0.33 550 27.73 785 69.62
320 2.50 555 28.55 790 70.36
325 8.36 560 29.39 795 71.17
330 17.72 565 30.42 800 71.89
335 28.42 570 31.50 805 72.67
340 38.57 575 32.63 810 73.37
345 47.56 580 33.72 815 74.09
350 54.58 585 34.73 820 74.67
355 58.99 590 35.72 825 75.50
360 62.93 595 36.77 830 76.21
365 65.74 600 37.91 835 76.82
370 68.19 605 39.00 840 77.27
375 70.09 610 40.01 845 78.08
380 71.65 615 40.98 850 78.63
385 73.92 620 41.91 855 78.95
390 76.39 625 42.73 860 79.39
395 77.89 630 43.53 865 79.47
400 78.36 635 44.23 870 80.29
405 77.87 640 44.92 875 80.81
410 76.31 645 45.63 880 82.04
415 73.59 650 46.34 885 80.42
420 69.51 655 47.14 890 81.30
425 66.42 660 47.97 895 82.05
430 62.56 665 48.93 900 82.36
