Kopp 5330 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Note:

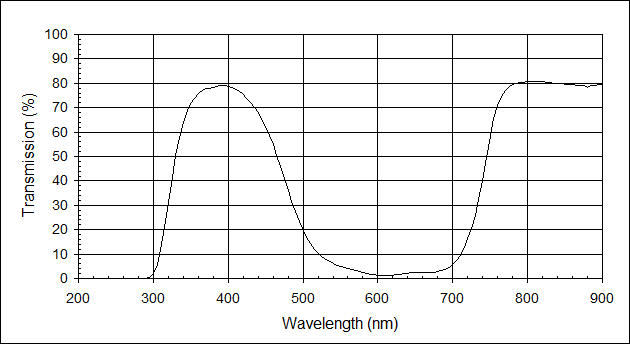

Graph and tabular data at 4.01 mm |
|
|
|
|
|
|
|
|
|
|
| Filter
Specifications |
|
|
|
|
|
|
|
Minimum transmission must
be at 617 ± 10 nm |
|
|
|
|
|
Difference between 15%
and 50% transmission in the blue region must 40 ± 7 nm |
|
|
Difference between 50%
and 15% transmission in the red region must 20 ± 7 nm |
|
|
Transmission at 510 nm
must be > 10% and < 20% |
|
|
|
|
Transmission at 720 nm
must be < 10% |
|
|
|
|
|
|
|
|
|
|
|
| Physical
Properties |
|
|
|
Nominal Thickness Range |
|
3.0 - 4.5 mm |
|
|
Refractive Index |
|
|
nD = 1.48 |
|
|
Density |
|
|
2.24 g/cm3 |
|
|
Thermal Linear Expansion |
|
51E-7 /șC (30-300 șC) |
|
|
Strain Temperature |
|
|
482 șC |
|
|
Annealing Temperature |
|
|
529 șC |
|
|
Deformation Temperature |
|
570 șC |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
Kopp 5330 |
|
|
|
Wavelength |
Transmission |
Wavelength |
Transmission |
Wavelength |
Transmission |
|
|
(nm) |
(%) |
|
(nm) |
(%) |
|
(nm) |
(%) |
|
|
|
200 |
0.00 |
|
435 |
70.19 |
|
670 |
2.45 |
|
|
205 |
0.00 |
|
440 |
68.02 |
|
675 |
2.60 |
|
|
210 |
0.00 |
|
445 |
65.30 |
|
680 |
2.82 |
|
|
215 |
0.00 |
|
450 |
62.32 |
|
685 |
3.18 |
|
|
220 |
0.00 |
|
455 |
58.80 |
|
690 |
3.71 |
|
|
225 |
0.00 |
|
460 |
54.78 |
|
695 |
4.50 |
|
|
230 |
0.00 |
|
465 |
50.31 |
|
700 |
5.67 |
|
|
235 |
0.00 |
|
470 |
45.71 |
|
705 |
7.32 |
|
|
240 |
0.00 |
|
475 |
40.96 |
|
710 |
9.60 |
|
|
245 |
0.00 |
|
480 |
36.21 |
|
715 |
12.57 |
|
|
250 |
0.00 |
|
485 |
31.66 |
|
720 |
16.27 |
|
|
255 |
0.00 |
|
490 |
27.31 |
|
725 |
20.67 |
|
|
260 |
0.00 |
|
495 |
23.34 |
|
730 |
25.90 |
|
|
265 |
0.00 |
|
500 |
19.79 |
|
735 |
32.29 |
|
|
270 |
0.00 |
|
505 |
16.71 |
|
740 |
40.20 |
|
|
275 |
0.00 |
|
510 |
14.14 |
|
745 |
49.40 |
|
|
280 |
0.00 |
|
515 |
12.01 |
|
750 |
58.09 |
|
|
285 |
0.01 |
|
520 |
10.30 |
|
755 |
65.47 |
|
|
290 |
0.07 |
|
525 |
8.90 |
|
760 |
70.73 |
|
|
295 |
0.45 |
|
530 |
7.74 |
|
765 |
74.52 |
|
|
300 |
1.91 |
|
535 |
6.85 |
|
770 |
76.95 |
|
|
305 |
5.56 |
|
540 |
6.12 |
|
775 |
78.32 |
|
|
310 |
12.04 |
|
545 |
5.53 |
|
780 |
79.45 |
|
|
315 |
21.00 |
|
550 |
4.99 |
|
785 |
79.98 |
|
|
320 |
31.34 |
|
555 |
4.47 |
|
790 |
80.37 |
|
|
325 |
41.47 |
|
560 |
3.97 |
|
795 |
80.42 |
|
|
330 |
50.29 |
|
565 |
3.51 |
|
800 |
80.64 |
|
|
335 |
57.73 |
|
570 |
3.08 |
|
805 |
80.64 |
|
|
340 |
64.05 |
|
575 |
2.69 |
|
810 |
80.75 |
|
|
345 |
68.70 |
|
580 |
2.35 |
|
815 |
80.79 |
|
|
350 |
71.63 |
|
585 |
2.07 |
|
820 |
80.61 |
|
|
355 |
73.89 |
|
590 |
1.84 |
|
825 |
80.50 |
|
|
360 |
75.99 |
|
595 |
1.62 |
|
830 |
80.44 |
|
|
365 |
77.25 |
|
600 |
1.43 |
|
835 |
80.10 |
|
|
370 |
78.07 |
|
605 |
1.31 |
|
840 |
80.06 |
|
|
375 |
77.83 |
|
610 |
1.26 |
|
845 |
79.96 |
|
|
380 |
78.10 |
|
615 |
1.29 |
|
850 |
79.71 |
|
|
385 |
78.88 |
|
620 |
1.37 |
|
855 |
79.51 |
|
|
390 |
79.14 |
|
625 |
1.55 |
|
860 |
79.54 |
|
|
395 |
79.06 |
|
630 |
1.80 |
|
865 |
79.26 |
|
|
400 |
78.75 |
|
635 |
2.04 |
|
870 |
79.10 |
|
|
405 |
78.17 |
|
640 |
2.21 |
|
875 |
79.23 |
|
|
410 |
77.42 |
|
645 |
2.34 |
|
880 |
78.45 |
|
|
415 |
76.50 |
|
650 |
2.40 |
|
885 |
78.94 |
|
|
420 |
75.21 |
|
655 |
2.40 |
|
890 |
79.23 |
|
|
425 |
73.87 |
|
660 |
2.37 |
|
895 |
79.64 |
|
|
430 |
72.20 |
|
665 |
2.38 |
|
900 |
79.65 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
