Kopp 5562

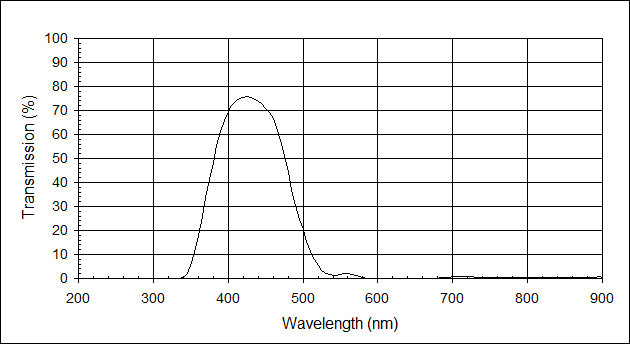

Note: Graph and tabular data at 5.00 mm
Filter Specifications
Transmission at 505 nm must be 15 ± 0.7%
The difference between 15% and 60% transmission must be 40 ± 5 nm
Transmission at 750 nm must be < 2%
Physical Properties
Nominal Thickness Range 4.4 - 5.6 mm
Refractive Index nD = 1.54
Density 2.88 g/cm3
Thermal Linear Expansion 91E-7 /șC (30-300 șC)
Strain Temperature 386 șC
Annealing Temperature 425 șC
Deformation Temperature 620 șC


    Kopp 5562
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 74.57 670 0.07
205 0.00 440 73.78 675 0.11
210 0.00 445 72.71 680 0.19
215 0.00 450 71.02 685 0.30
220 0.00 455 69.14 690 0.44
225 0.00 460 66.68 695 0.56
230 0.00 465 62.98 700 0.65
235 0.00 470 57.70 705 0.69
240 0.00 475 51.38 710 0.70
245 0.00 480 44.48 715 0.69
250 0.01 485 37.19 720 0.67
255 0.00 490 30.43 725 0.65
260 0.01 495 24.78 730 0.61
265 0.01 500 20.32 735 0.58
270 0.00 505 15.61 740 0.55
275 0.00 510 11.26 745 0.53
280 0.00 515 8.07 750 0.50
285 0.00 520 5.42 755 0.49
290 0.00 525 3.43 760 0.47
295 0.00 530 2.19 765 0.45
300 0.00 535 1.56 770 0.44
305 0.00 540 1.30 775 0.43
310 0.00 545 1.28 780 0.42
315 0.00 550 1.50 785 0.42
320 0.00 555 1.88 790 0.41
325 0.00 560 2.05 795 0.40
330 0.01 565 1.85 800 0.40
335 0.10 570 1.36 805 0.41
340 0.61 575 0.81 810 0.40
345 2.18 580 0.39 815 0.40
350 5.55 585 0.17 820 0.41
355 10.84 590 0.09 825 0.41
360 17.83 595 0.07 830 0.42
365 25.69 600 0.07 835 0.41
370 33.78 605 0.07 840 0.43
375 41.40 610 0.06 845 0.44
380 48.44 615 0.06 850 0.44
385 55.26 620 0.05 855 0.47
390 61.22 625 0.04 860 0.48
395 65.94 630 0.03 865 0.49
400 69.49 635 0.02 870 0.51
405 72.05 640 0.02 875 0.49
410 73.81 645 0.02 880 0.54
415 74.81 650 0.02 885 0.56
420 75.50 655 0.02 890 0.57
425 75.72 660 0.03 895 0.63
430 75.30 665 0.04 900 0.61
