Kopp 5874

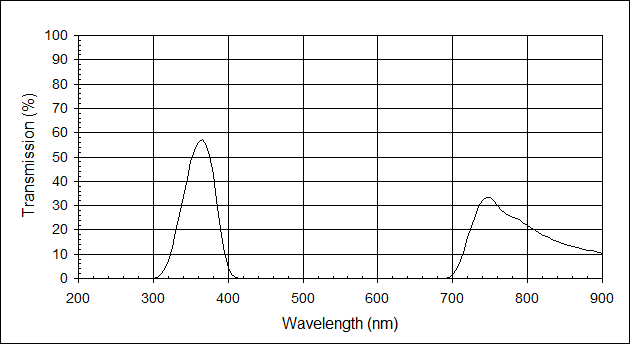

	Note: Graph and tabular data at 5.10 mm
	Filter Specifications
		Transmission must be > 50% at 365 nm
	Physical Properties
		Nominal Thickness Range					4.9 - 5.1 mm
		Refractive Index					nD = 1.49
		Density					2.33 g/cm3
		Thermal Linear Expansion					44E-7 /ºC (30-300 ºC)
		Strain Temperature					532 ºC
		Annealing Temperature					572 ºC
		Deformation Temperature					794 ºC
			Kopp 5874
		Wavelength	Transmission		Wavelength	Transmission		Wavelength	Transmission
		(nm)	(%)		(nm)	(%)		(nm)	(%)
		200	0.00		435	0.00		670	0.00
		205	0.00		440	0.00		675	0.00
		210	0.00		445	0.00		680	0.00
		215	0.00		450	0.00		685	0.02
		220	0.00		455	0.00		690	0.10
		225	0.00		460	0.00		695	0.45
		230	0.00		465	0.00		700	1.50
		235	0.00		470	0.00		705	3.73
		240	0.00		475	0.00		710	7.29
		245	0.00		480	0.00		715	11.88
		250	0.00		485	0.00		720	16.83
		255	0.00		490	0.00		725	21.54
		260	0.00		495	0.00		730	25.84
		265	0.00		500	0.00		735	29.49
		270	0.00		505	0.00		740	32.20
		275	0.00		510	0.00		745	33.45
		280	0.00		515	0.00		750	33.46
		285	0.00		520	0.00		755	32.14
		290	0.00		525	0.00		760	30.21
		295	0.01		530	0.00		765	28.13
		300	0.08		535	0.00		770	26.71
		305	0.41		540	0.00		775	25.75
		310	1.46		545	0.00		780	25.18
		315	3.73		550	0.00		785	24.56
		320	7.42		555	0.00		790	23.71
		325	12.65		560	0.00		795	22.76
		330	19.28		565	0.00		800	21.75
		335	26.45		570	0.00		805	20.67
		340	33.85		575	0.00		810	19.71
		345	41.17		580	0.00		815	18.82
		350	48.14		585	0.00		820	17.90
		355	52.86		590	0.00		825	17.17
		360	55.83		595	0.00		830	16.43
		365	57.31		600	0.00		835	15.75
		370	55.61		605	0.00		840	15.17
		375	50.62		610	0.00		845	14.56
		380	42.63		615	0.00		850	14.01
		385	32.13		620	0.00		855	13.61
		390	20.48		625	0.00		860	13.09
		395	10.56		630	0.00		865	12.71
		400	4.41		635	0.00		870	12.38
		405	1.51		640	0.00		875	11.87
		410	0.44		645	0.00		880	11.68
		415	0.12		650	0.00		885	11.37
		420	0.03		655	0.00		890	10.97
		425	0.01		660	0.00		895	10.82
		430	0.00		665	0.00		900	10.23
