Kopp 9335

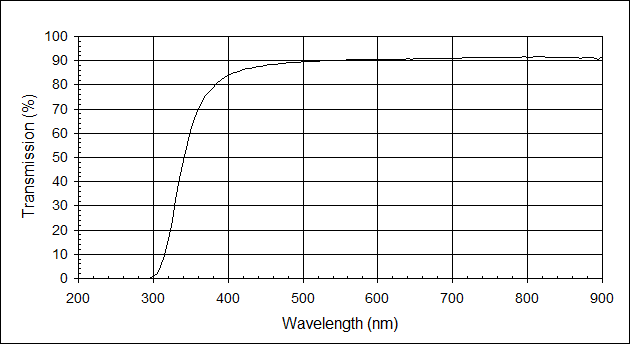

Note: Graph and tabular data at 2.00 mm
Filter Specifications
Transmission must be ³ 50% at 335 ± 10 nm
Transmission must be ³ 80% from 390 ± 10 nm
Physical Properties
Nominal Thickness Range 2.0 mm
Refractive Index nD = 1.51
Density 2.41 g/cm3
Thermal Linear Expansion 52E-7 /ºC (30-300 ºC)
Strain Temperature 501 ºC
Annealing Temperature 545 ºC
Deformation Temperature 620 ºC

    Kopp 9335
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 87.16 670 90.83
205 0.01 440 87.46 675 90.88
210 0.01 445 87.65 680 90.90
215 0.01 450 87.99 685 90.96
220 0.01 455 88.30 690 91.07
225 0.01 460 88.46 695 91.08
230 0.00 465 88.63 700 91.05
235 0.01 470 88.72 705 90.94
240 0.00 475 88.96 710 91.01
245 0.01 480 89.07 715 91.14
250 0.00 485 89.08 720 91.22
255 0.00 490 89.27 725 91.18
260 0.01 495 89.40 730 91.20
265 0.00 500 89.61 735 91.25
270 0.00 505 89.68 740 91.34
275 0.00 510 89.69 745 91.24
280 0.00 515 89.71 750 91.26
285 0.00 520 89.84 755 91.32
290 0.03 525 89.92 760 91.32
295 0.15 530 90.03 765 91.38
300 0.63 535 90.13 770 91.39
305 1.98 540 90.22 775 91.35
310 4.85 545 90.17 780 91.48
315 9.59 550 90.15 785 91.44
320 16.12 555 90.25 790 91.50
325 24.06 560 90.40 795 91.59
330 32.69 565 90.36 800 91.33
335 41.17 570 90.32 805 91.43
340 48.79 575 90.41 810 91.69
345 55.95 580 90.46 815 91.67
350 61.35 585 90.47 820 91.55
355 66.18 590 90.57 825 91.41
360 70.24 595 90.54 830 91.34
365 73.24 600 90.61 835 91.45
370 75.70 605 90.53 840 91.50
375 77.47 610 90.53 845 91.23
380 78.98 615 90.62 850 91.12
385 80.62 620 90.64 855 91.12
390 81.95 625 90.68 860 91.37
395 83.00 630 90.67 865 91.46
400 83.93 635 90.61 870 90.97
405 84.59 640 90.72 875 91.12
410 85.17 645 90.64 880 91.33
415 85.60 650 90.74 885 91.38
420 86.26 655 90.77 890 90.94
425 86.65 660 90.79 895 90.67
430 86.86 665 90.91 900 91.90
